Pulsar Plus III

product det image
left arrow
Pulsar Plus Iii S1 Pulsar Plus Iii S 3 Pulsar Plus Iii S 2 Plusiii
right arrow

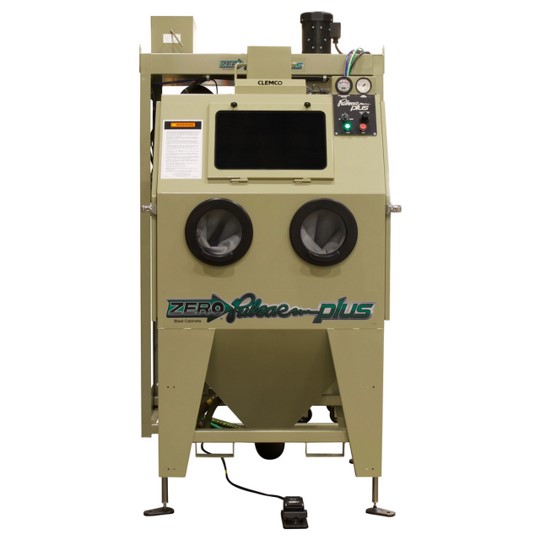

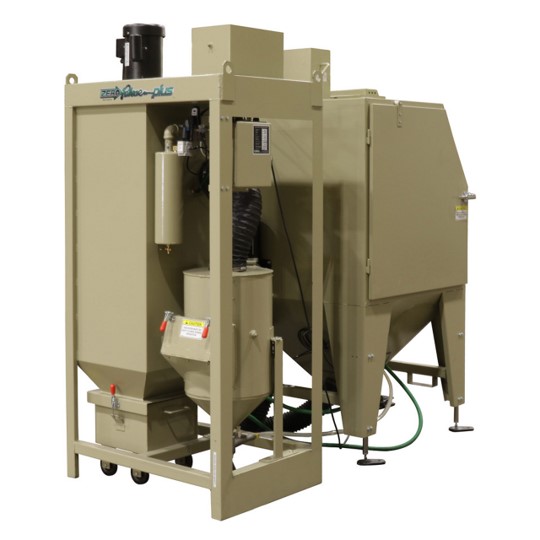

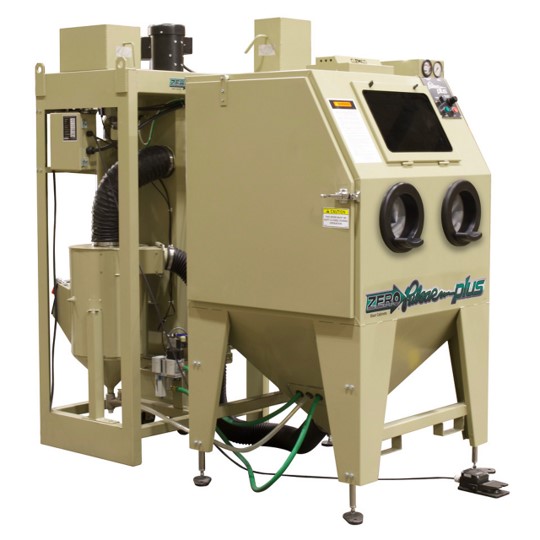

Clemco's ZERO Brand Pulsar Plus III Pressure Blast Cabinet with 300 CFM Reclaim is perfect for high-production applications, cleaning part 3-4 times faster than suction cabinets. They do require high volumes of air to maintain this production rate.


Powerful, Compact Blast Machine
• Pulsar Plus Pressure Cabinets are equipped with a 1-cuft blast machine that automatically refills from the reclaimer.
• The blast machine holds enough media to continuously blast up to 30 minutes.
• It meets ASME specifications for 125 psi maximum working pressure.
• Each blast machine is fitted with a large handhole for internal maintenance and a 35° conical bottom for smooth media flow.

Pulsar VI
• 71” width (1803 mm)
• 52” depth (1321 mm)
• 84” height (2134 mm)

Working Chamber - Pulsar VI
• 50” width (1270mm)
• 39” depth (991mm)
• 43” height (1092mm)

Door Opening - Pulsar VI
A. 36.5” (927 mm)
B. 38” (965 mm)
C. 19.5” (495 mm)
D. 20.5” (521 mm)
E. 27” (686 mm)

Electrical
300 CFM and 600 CFM
1 HP, 115V, 1 PH, 60 Hz
Note: Some installations
may require electrical
connection by a qualified
electrician.


Window Size (safety glass)
• 19.5” width (495 mm)
• 12.5” height (318 mm)

Dust Collector Filtering Area
300 CFM (9.9 m2) • 600 CFM (18.1 m2)
Pulsar Plus Cabinets have a pleated dust filter with a
MERV-12 rating. For work environments with especially
toxic dust, order an optional HEPA filter. They trap 99.988%
of dust down to 0.3 micron particles.
