COBRA STAGE I SIPHON
MBA | COBRA STAGE I SIPHON
Part number: CobraStageI

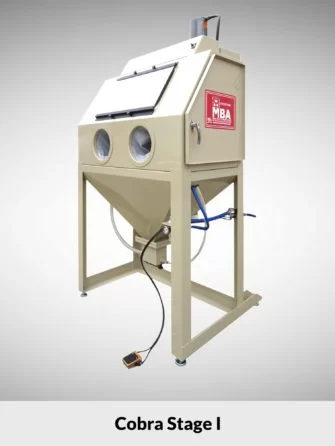

The Cobra Stage I Siphon blast cabinet comes in two different models. Both are 100% welded, and include a negative pressure, 100% welded dust collector design using MERV tested and certified cartridge filtration. The Cobras are the best of the smaller, compact sandblasting cabinets using 16 or 22 cfm of compressed air.
The Cobra Stage I is a 100% welded negative pressure cabinet. Also included is a 100% welded dust collector using 14-gauge steel. The Stage I includes two (2) side access doors on the blasting cabinet and one access service door on the dust collector. The dust collector has hopper bottom dust storage with MERV tested cartridge filtration technology.
This MediaBlaster® model, the Cobra Stage I, was designed for general repair shops, in-house maintenance, home shops and automotive repair shops when compressed air is limited to air compressors operating on only 220-volt single phase power supply that is normally limited to 16 cfm at 80 PSI maximum. This Mediablaster is primarily used for glass bead blasting.
| Media Blast Cabinets | Sandblasting | MBA | Mediablaster | Gabinetes | Cabina | Gabinete de Sandblast | Gabinete de Arenado | Cabina para Sandblasting | Gabinete de Mesa |
Model Name:
Cobra Stage I
Machine Type:
Light Duty cabinet with double doors and cartridge filter dust collector
Abrasive Delivery:
Dry, Siphon
Air Specs:
16 cfm
Compressed Air Usage:
16 cfm at 80 psi Stage I
Suggested Air Compressor:
We recommend a 220-volt, single-phase electrical power supply for the air compressor.
Pro Tip: Never buy a compressor using the displacement cfm number; always use the second cfm volume number listed with 90-100 psi inside the tank, because tank pressure reduces performance.
Recommended Abrasive Size:
60 to 120 mesh
Additional Abrasive Info:
Mil-Spec #8 glass beads best
Most Used Abrasive Type:
Glass Beads and Glass Bead Blend with Aluminum Oxide
Dust Collector:
330 cfm blower – 110 sq.ft. cartridge filters – negative pressure dust collector – patented separator reclaimer – manual dust collector cleaning cycle
Key Features:
100% welded – foot operated blast valve – tungsten nozzle – abrasive mixing valve – safety glass window – low static window protector – air regulator combo – separator reclaimer – 2 side access doors – outside LED lighting and housing – vibrator cleaned cartridges
Paint Specification:
Environmentally friendly, high-grade polyurethane high gloss paint. Standard colors include MBA beige and high gloss light gray. Custom color matching is available using customer supplied color sample; please call 866-204-7068 for pricing.
- Right and Left Side Access Door
- Tool-Less Window Replacement
- Large Hopper Abrasive Drain
- Flow Control Mixing Valve Sump with Drain
- Foot Operated Blast
- *Patented Separator Reclaimer
- Negative Pressure Dust Collector, 100% Welded
- 110 sq.ft. MERV Tested Filter Cartridges
- Vibrator Cleaned Cartridges (Stage II)
- Large Dust Storage Hopper
- Dust Collector Service Door
- 330 cfm Blower (Stage I)
- 16 cfm Gun (Stage I)
- Tungsten Blasting Nozzle
- 13” x 24” ClearView™ Window
- Low Static Window Protector Glass
- Window Sweep
- Advanced LED Lighting
- 8” Work Ports
- All Air Controls
- Leg Leveling Pads
