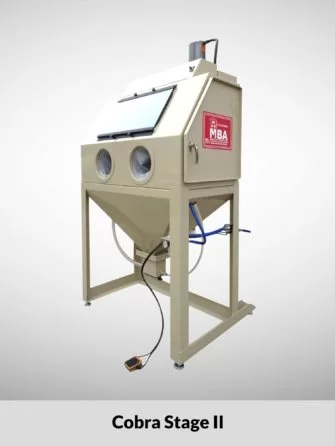

COBRA STAGE II SIPHON
MBA | COBRA STAGE II SIPHON
Part number: CobraStageII
The Cobra Stage II Siphon is one of two Cobra blast cabinet models are available. Both are 100% welded, and include a negative pressure, 100% welded dust collector design using MERV tested and certified cartridge filtration. The Cobras are the best of the smaller, compact sandblasting cabinets. The faster cleaning Stage II includes a larger gun size than the Stage I machine.
The Cobra’s all-negative pressure cabinet and negative dust collector are 100% welded using 14-gauge steel. This includes two (2) side access doors on the blasting cabinet and on an access service door on the dust collector, which includes hopper bottom dust storage with MERV tested cartridge filtration technology.
This MediaBlaster® unit was designed for general repair shops, in-house maintenance, home shops and automotive repair shops when compressed air is limited to air compressors operating on only 220-volt single phase power supply that is normally limited to 25 cfm maximum. This mediablaster is primarily used for glass bead blasting.
| Media Blast Cabinets | Sandblasting | MBA | Mediablaster | Gabinetes | Cabina | Gabinete de Sandblast | Gabinete de Arenado | Cabina para Sandblasting | Gabinete de Mesa |
Model Name:
Cobra Stage II
Machine Type:
Most advanced light duty model with negative pressure cartridge dust collector
Abrasive Delivery
Dry, Siphon
Air Specs:
22 cfm
Compressed Air Usage:
22 cfm at 80 psi (Stage II)
Suggested Air Compressor:
We recommend a 220-volt single-phase electrical power supply for the air compressor.
Pro Tip: Never buy a compressor using the displacement cfm number; always use the second cfm volume number listed with 90-100 psi inside the tank, because tank pressure reduces performance.
Recommended Abrasive Size:
60 to 120 mesh
Additional Abrasive Info:
Mil-Spec #8 glass beads best
Most Used Abrasive Type:
Glass Beads and Glass Bead Blend with Aluminum Oxide

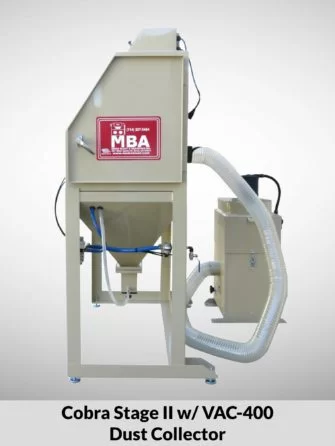

Dust Collector
500 cfm blower – 110 sq. ft. cartridge filter – negative pressure dust collector – hopper bottom dust storage – patented separator reclaimer – window sweep – pneumatic vibrator dust collector cleaning cycle with air switch control
Key Features:
100% welded cabinet & dust collector – foot operated blast valve – abrasive mixing valve – oversized safety glass window w/ window protector – air regulator combo – patented separator reclaimer – 2 doors – negative pressure 100% welded 110 sq. ft. cartridge dust collector – semi-automatic vibrator cleaning cycle with air switch control
Paint Specification:
Environmentally friendly, high-grade polyurethane high gloss paint. Standard colors include MBA beige and high gloss light gray. Custom color matching is available using customer supplied color sample; please call 866-204-7068 for pricing.
- Right and Left Side Access Door
- Tool-Less Window Replacement
- Large Hopper Abrasive Drain
- Flow Control Mixing Valve Sump with Drain
- Foot Operated Blast
- *Patented Separator Reclaimer
- Negative Pressure Dust Collector, 100% Welded
- 110 sq.ft. MERV Tested Filter Cartridges
- Vibrator Cleaned Cartridges (Stage II)
- Large Dust Storage Hopper
- Dust Collector Service Door
- 500 cfm Blower (Stage II)
- 22 cfm Gun (Stage II)
- Tungsten Blasting Nozzle
- 13” x 24” ClearView™ Window
- Low Static Window Protector Glass
- Window Sweep
- Advanced LED Lighting
- 8” Work Ports
- All Air Controls
- Leg Leveling Pads
Cobra-Stage-II.pdf
