HOBBY BLAST
MBA | Hobby Blast
Part number: CB Scout

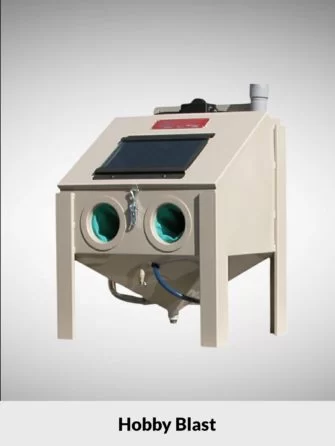

The Hobby Blast is a small, light duty, siphon top-loading media blast cabinet that requires 12 cfm of compressed air for proper operation. To save on floor space, the unit allows for bench top or wall mounting. This Mediablaster® is manufactured specifically for smaller cleaning applications such as hand-held tools or auto parts.
It is equipped with many standard features, which are listed below in detail. This 100% welded-steel, leak-proof blasting cabinet is designed to outperform larger cabinets having having fewer features. This MediaBlaster® sand blasting cabinet is primarily used for glass bead blasting.
The Hobby Blast sandblasting cabinet requires, but does not include, a vacuum dust collector (shop vacuum) for operation. This allows users to use any existing shop vacuum. An optional separator reclaimer is available to remove dust and keep the abrasive clean. This feature greatly improves cabinet visibility by removing the dust.
If you’re looking for blast cabinet parts or the user manual for this machine, CONTACT US HERE.
| Media Blast Cabinets | Sandblasting | MBA | Mediablaster | Gabinetes | Cabina | Gabinete de Sandblast | Gabinete de Arenado | Cabina para Sandblasting | Gabinete de Mesa |
Model Name:
Hobby Blast
Machine Type:
Light Duty siphon machine for bench top or wall-mounted operation
Abrasive Delivery:
Dry, Siphon
Air Specs:
5-12 cfm
Compressed Air Usage:
12 cfm at 80 psi
Suggested Air Compressor:
We recommend a 220-volt, single-phase electrical power supply for the air compressor needed to operate this cabinet.
Pro Tip: Never buy a compressor using the displacement cfm number; always use the second cfm volume number listed with 90-100 psi inside the tank, because tank pressure reduces performance.
RECOMMENDED ABRASIVE SIZE:
60 to 120 mesh
Additional Abrasive Info:
100 mesh and finer with small gun
Most Used Abrasive Type:
Glass Beads and Glass Bead Blend with Aluminum Oxide
Dust Collector:

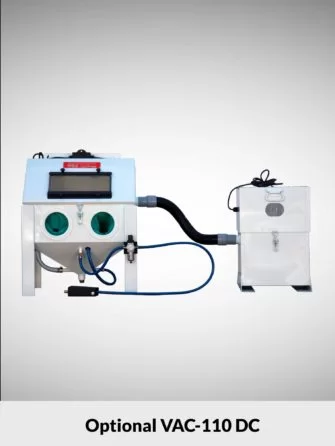

Customer supplied shop vacuum or optional Media Blast VAC-110 vacuum dust collector with vacuum separator reclaimer -(cabinet sold less shop vacuum dust collector)
Key Features
100% welded – foot operated blast – abrasive mixing valve – low static window protector – air regulating valve – LED cabinet lighting – wall mounting bracket – (THIS IS NOT A SPOT-WELDED IMPORT MACHINE)
Paint Specification:
Environmentally friendly, high-grade polyurethane high gloss paint. Standard colors include MBA beige and high gloss light gray. Custom color matching is available using customer supplied color sample; please call 866-204-7068 for pricing.
STANDARD FEATURES: • 100% welded cabinet construction • Adjustable flow-control abrasive mixing valve • Foot operated blast control valve • Small Y blast gun with tungsten carbide nozzle • Advanced LED lighting • Safety glass view window • View window protector glass (low static) • Clean top loading access door w/ latch • Air regulating pressure valve • 5” diameter work ports with attached gloves • Perforated metal work grates • Shop vacuum adaptor • Wall mounting bracket • On-off control switch with power service supply for dust collector operation • Catalyst paint
