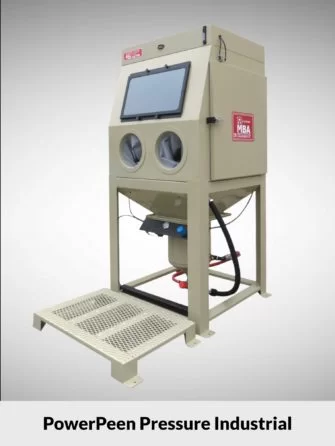

MBA |  INDUSTRIAL POWER PEEN DIRECT PRESSURE
Part number: PowerPeenDirectPressure

The Power Peen Direct Pressure sandblasting cabinet is made from 100% welded 12- and 14-gauge CRS. It includes internal abrasive storage and a *patented internal separator reclaimer for use with a variety of abrasives and gun sizes.

The Power Peen is a Direct Pressure Mediablaster® designed as industrial sandblasting equipment for Production capacity applications. This means the Power Peen blast cabinet is able to operate one (1) or more hours daily.

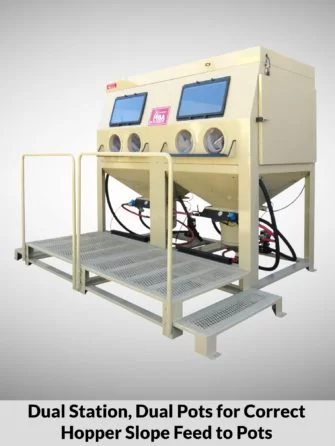

This mediablaster cabinet requires 25 cfm of compressed air, or more, and includes a 1.0 cubic foot ASME coded Pressure Pot complete with pressure pot access port for service. The Pressure Pot is used to pneumatically push the abrasive media through the blast hose. It is the reason a pressure machine can produce faster abrasive velocities than abrasive delivery methods that do not utilize a pressure pot. Media Blast advises a small, raised operator's platform to maintain the proper hopper slope to feed the pot on our Power Peen models. This platform varies in height depending on cabinet size and is listed in the Optional Features.


| Media Blast Cabinets | Sandblasting | MBA | Mediablaster | Gabinetes | Cabina | Gabinete de Sandblast | Gabinete de Arenado | Cabina para Sandblasting | Gabinete de Mesa |

Model Name:

Power Peen

Machine Type:

Direct Pressure with internal abrasive storage

Abrasive Delivery:

Dry, direct pressure

Air Specs:

25-90 cfm

Compressed Air Usage:

25 to 90 cfm at 80 psi

Suggested Air Compressor:

The standard nozzle size for the Power Peen is 3/16″ ID using 31 cfm at 60 psi. Smaller and larger nozzle sizes are available for applications with smaller and larger air compressors. Air compressors vary greatly, check the cfm output on the compressor being used or visit Air Basics for more information on compressor selection.
Pro Tip: Never buy a compressor using the displacement cfm number; always use the second cfm volume number listed with 90-100 psi inside the tank, because tank pressure reduces performance.

Recommended Abrasive Size:

0-150 mesh

Additional Abrasive Info:

Operates with all abrasive types

Most Used Abrasive Type:

Steel Shot, Steel Grit, Glass Beads, Aluminum Oxide, Silicon Carbide, Plastic and more

Dust Collector:

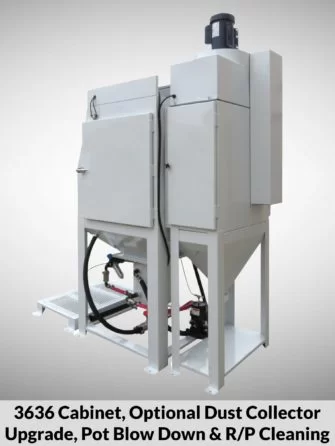

700 & 1100 cfm – 220 & 440 sq.ft. cartridge filters – hopper bottom dust storage – patented internal separator reclaimer – dust collector service access door

Key Features:

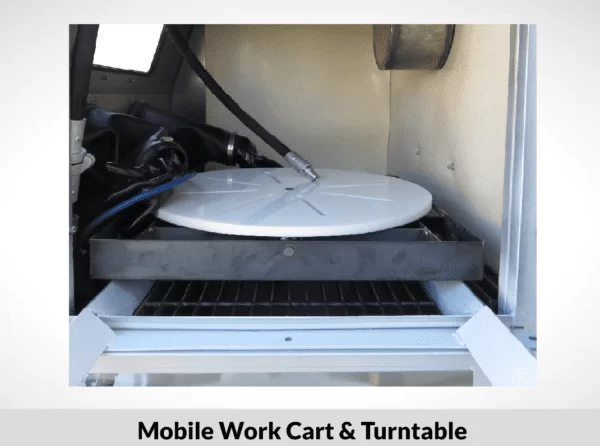

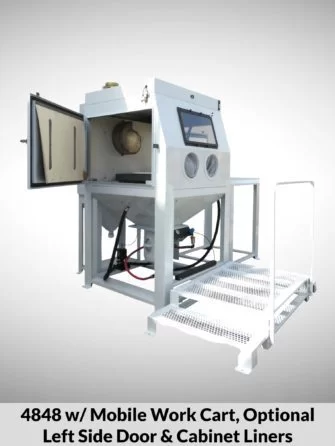

6 six standard production cabinet sizes – internal patented separator reclaimer – 120 volt and high voltage electrical – abrasive mixing valve – LED cabinet lighting – all air controls – tungsten carbide nozzle – safety glass window with protector – window air sweep – safety door interlock – expanded grates – blow-off gun and more – many options available for part handling, turntables and mobile carts

Paint Specification:

Environmentally friendly, high-grade polyurethane high gloss paint. Standard colors include MBA beige and high gloss light gray. Custom color matching is available using customer supplied color sample, please call 866-204-7068 for pricing.

STANDARD FEATURES:

  • 100% welded 14-gauge CRS cabinet construction
  • Bolt-on machine hopper, replaceable
  • 1.0 cubic foot ASME coded pressure pot assembly with access port
  • Heavy duty abrasive flow-control mixing valve
  • Pressure pot choke control valve for fine control
  • Foot operated blast control valve with treadle pedal
  • Smaller inside ERGO whip hose, replaceable
  • LED outside cabinet lighting on standard top with LED flood inside
  • LED spot lighting on expanded height models
  • Safety ClearView® 13” x 24” view window with window protector assembly
  • Window sweep to help eliminate static dust sticking
  • Tool-Less window replacement
  • Double panel door construction, no spills
  • Lockable refrigerator door handle
  • Safety door interlock
  • Operator dash panel
  • Precision air-regulator, air filter/water trap with gauge
  • 10″ diameter work ports with two-piece glove and gauntlet
  • Expanded metal work grates
  • Hopper flange to pot flange scalper screen
  • Steel front hopper wear plate, replaceable
  • Inside blow-off gun
  • Abrasive separator reclaimer, *patented
  • Machine Lag Pads
  • Production cartridge dust collector with:
    • 700 or 1100 cfm blower standard
    • Pneumatic vibrator cleaning cycle
    • Hopper bottom dust storage
    • 220 to 440 sq.ft. of MERV tested and certified cartridge filter
    • Maintenance access door
