SPACE SAVER HD
MBA | Space Saver HD
Part number: CB Scout

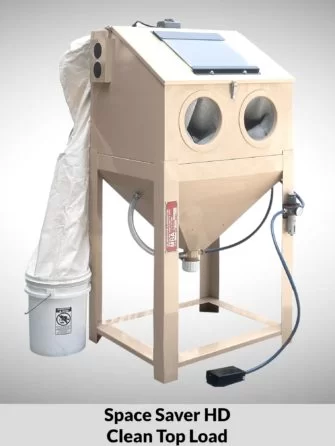

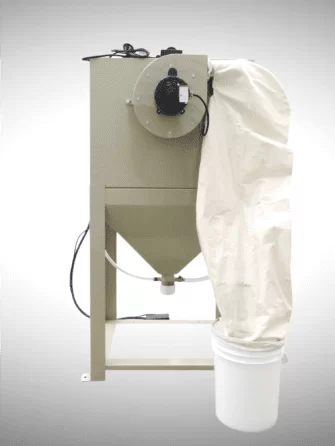

Space Saver HD MediaBlaster® comes standard with the Class III 335 cfm pressure blower with positive pressure tubular dust bag collector. It also comes with a patented centrifugal abrasive separator reclaimer.
It is a light duty, top-loading, siphon sandblasting cabinet with a small machine footprint. The Space Saver HD requires 16 cfm of compressed air for proper operation. This blast cabinet was designed for the following:
-Home garage use
-Small equipment repair shops
-Environments that cannot accommodate side loading access doors
Among the standard features, the Space Saver HD comes standard with a Class III 335 cfm pressure blower and patented centrifugal abrasive separator reclaimer. The reclaimer is used to remove dust and spent abrasive from the cabinet which vastly increases visibility. The *patented separator reclaimer is one of the most important items on any blast cabinet. This sand blasting cabinet also includes the tubular dust bag with dust collection pail. This Mediablaster® is primarily used for glass bead blasting.
| Media Blast Cabinets | Sandblasting | MBA | Mediablaster | Gabinetes | Cabina | Gabinete de Sandblast | Gabinete de Arenado | Cabina para Sandblasting | Gabinete de Mesa |
Model Name:
Space Saver HD
Machine Type:
Light duty machine with small footprint and top-loading design
Abrasive Delivery:
Dry, Siphon
Air Specs:
9-16 cfm
Compressed Air Usage:
16 cfm at 80 psi
Suggested Air Compressor:
We recommend a 220-volt single-phase electrical power supply for the air compressor.
Pro Tip: Never buy a compressor using the displacement cfm number; always use the second cfm volume number listed with 90-100 psi inside the tank, because tank pressure reduces performance.
RECOMMENDED ABRASIVE SIZE:
60 to 120 mesh
Additional Abrasive Info:
100 mesh and finer with small gun
Most Used Abrasive Type:
Glass Beads and Glass Bead Blend with Aluminum Oxide
Dust Collector:
330 cfm blower – tubular dust bag – dust storage pail – patented separator reclaimer
Key Features:
100% welded – foot operated blast valve – tungsten carbide nozzle – abrasive mixing valve – safety glass window – low static window protector – air regulator combo – patented separator reclaimer – top loading for a small footprint
Paint Specification:
Environmentally friendly, high-grade polyurethane high gloss paint. Standard colors include MBA beige and high gloss light gray. Custom color matching is available using customer supplied color sample; please call 866-204-7068 for pricing.
STANDARD FEATURES:
- 100% welded 14-gauge CRS cabinet construction
- Adjustable abrasive flow-control mixing valve
- Foot operated blast control valve
- Small 2-Y blast gun with tungsten carbide nozzle
- Advanced LED cabinet lighting
- Safety glass view window
- View window protector glass (low static)
- Clean top loading access door
- Precision air-regulator, air filter/water trap with gauge
- 8” diameter work ports with attached gloves
- Perforated metal work grates
- Bolt-in cabinet hopper scalper screen
- 1/2 hp 335 cfm class III pressure blower
- Separator reclaimer, pneumatic centrifuge bolt-on (replaceable), *patented
- Tubular dust bag filter with 5-gallon dust removal pale
- Machine Lag Pads
- Catalyst paint
- *US 7,008,304
