AQV-PPH PNEUMATIC PRESSURE-HOLD REMOTE CONTROL | 1 OPERATOR
CLEMCO | AQV-PPH PNEUMATIC PRESSURE-HOLD REMOTE CONTROL | 1 OPERATOR
Part number: 25834
This Auto Quantum Valve (AQV)-Pneumatic Pressure Hold (PPH) is a remote-control system for a single operator. With this single operator system, the blast pot will depressurize when the operator depressurizes the hose.
With this setup, the blast pot will remain pressurized when the handle is released and cuts off abrasive flow.

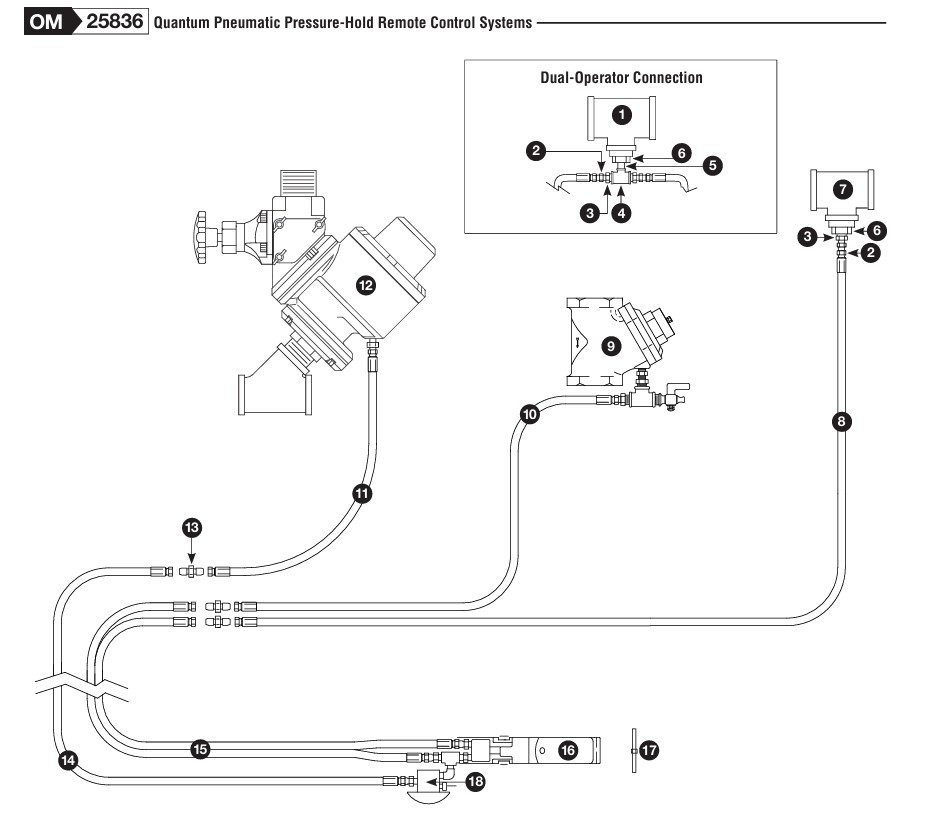

Replacemente parts breakdown:
1. 2” Tee | Part number: 01812
2. 1/8” Adaptor | Part number: 01945
3. 1/4” Bushing | Part number: 02010
4. 1/4” Pipe Tee | Part number: 01785
5. 1/4” Close Nipple | Part number: 01829
6. 1” Bushing | Part number: 02023
7. 1-1/4” Pipe Tee | Part number: 01811
8. 5’ Coupled Hose | Part number: 03083
9. ACE Air Valve with Fittings | Part number: 24044
10. 3’ Coupled Hose | Part number: 02498
11. 18” Coupled Hose | Part number: 02454
12. AQV Quantum Valve | Part number: 24447
13. Twinline Hose Union, 3 required | Part number: 01944
14. Single Line Coupled Hose
• 25’ | Part number: 28176
• 50’ | Part number: 03087
15. 50’ Coupled Twinline Hose | Part number: 01951
16. RLX Control Handle Assembly with ACS Complete | Part number: 07625
17. Nylon Tie | Part number: 02195
18. ACS Switch Assembly | Part number: 07654
