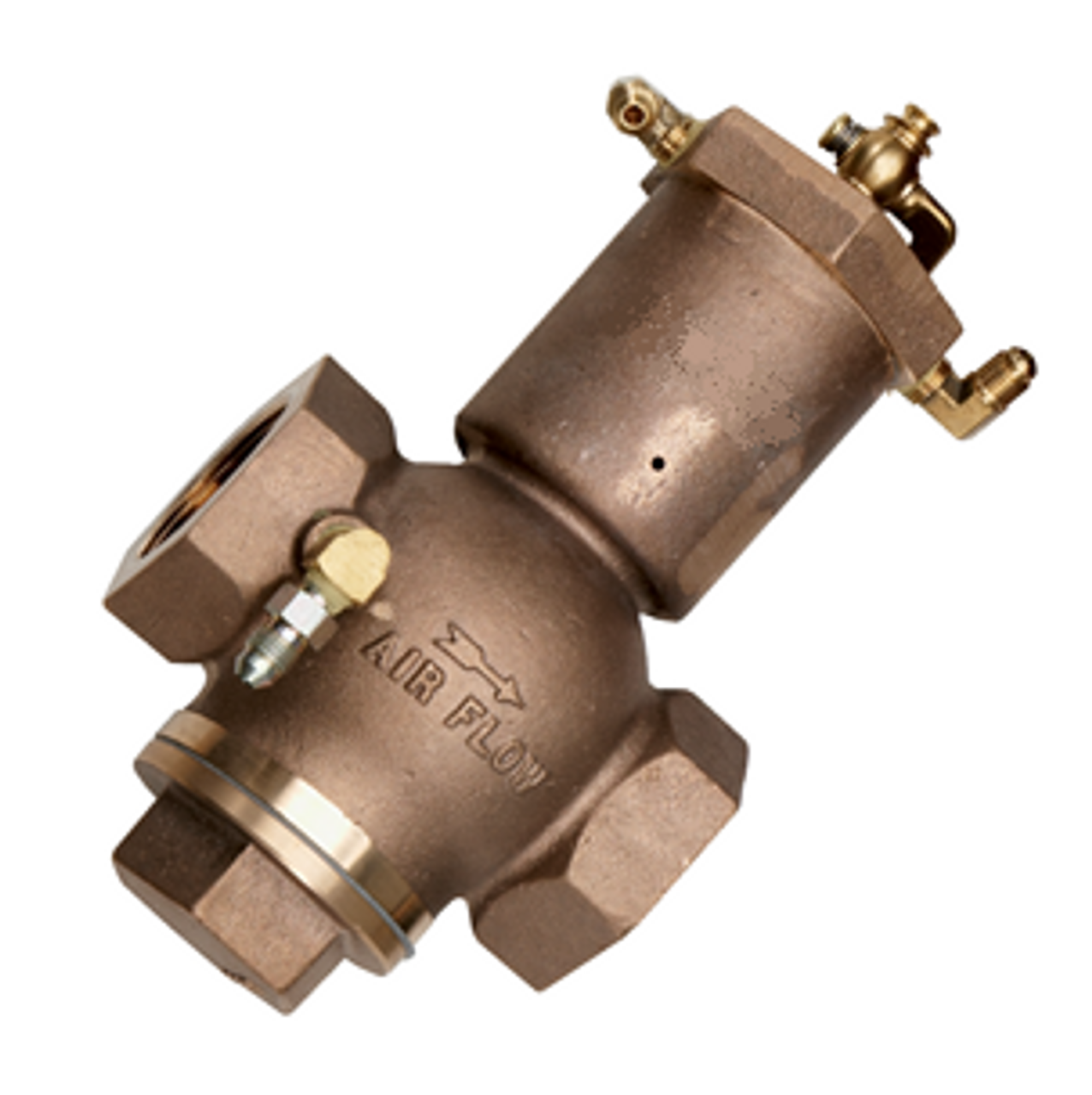

DIAPHRAGM OUTLET VALVE | 1-1/2"

CLEMCO | DIAPHRAGM OUTLET VALVE | 1-1/2"
Part Number: 01995

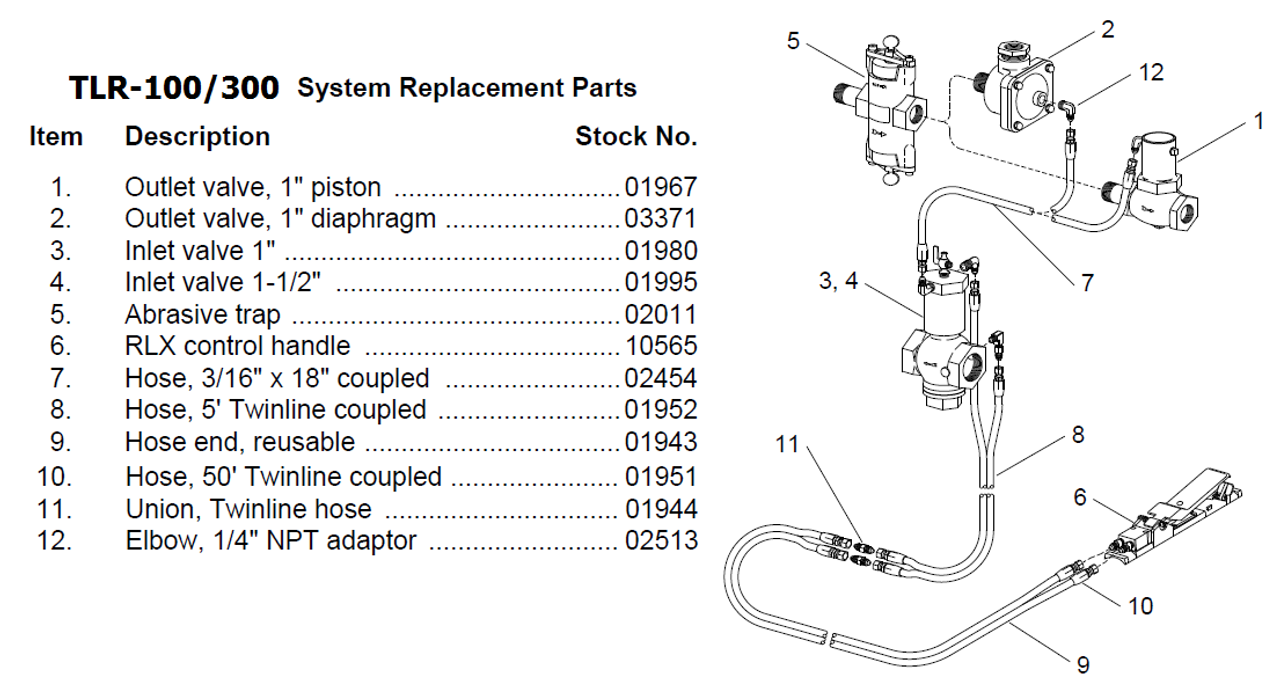

TLR 300 REMOTE SYSTEM

This is a replacement part for a 1-1/2” inlet valve for TLR-300 Remote Systems with a 1 1/4" outlet.

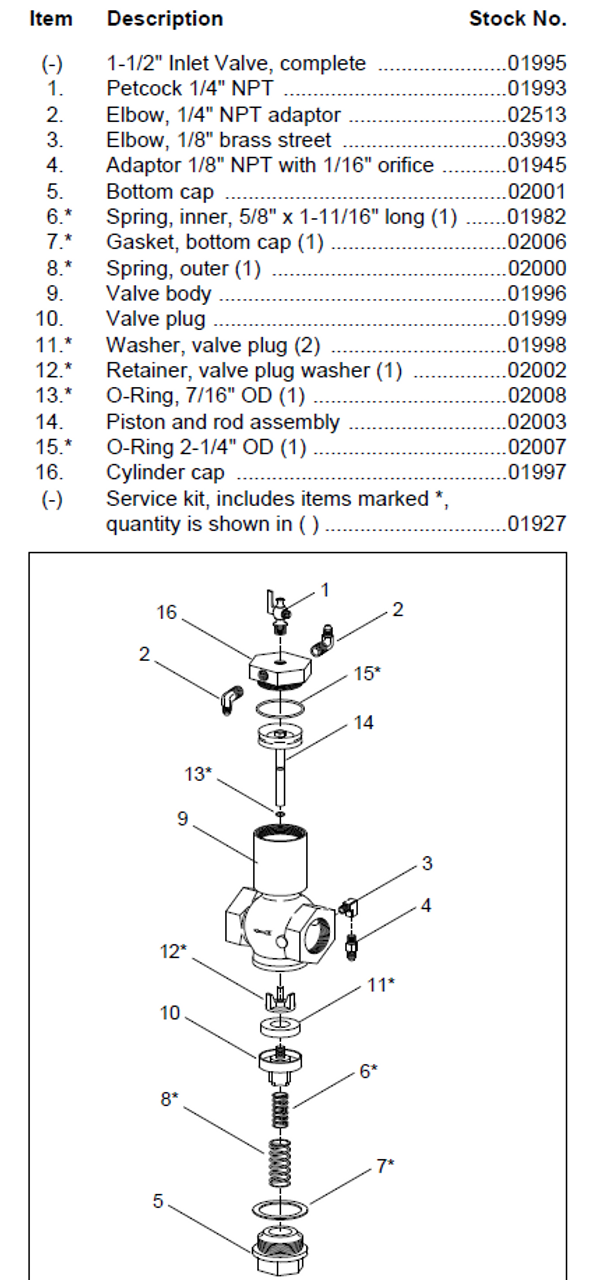

This 1 1/2” inlet valve includes:
Petcock 1/4" NPT
Elbow, 1/4" NPT adaptor
Elbow, 1/8" brass street
Adaptor 1/8" NPT with 1/16" orifice
Bottom cap
Spring, inner, 5/8" x 1-11/16" long
Gasket, bottom cap
Spring, outer
Valve body
Valve plug
Washer, valve plug
Retainer, valve plug washer
O-Ring, 7/16" OD
Piston and rod assembly
O-Ring 2-1/4" OD
Cylinder cap
