HIGH-VOLUME COMPRESSED-AIR COALESCENT FILTERS PORTABLE | 10” DIAM

CLEMCO | HIGH-VOLUME COMPRESSED-AIR COALESCENT FILTERS PORTABLE | 10” DIAM
Part Number: 23108

Filter, Coalescent, Hi-volume, 800 cfm, 150 psi, with 2” inlet, 2” outlet

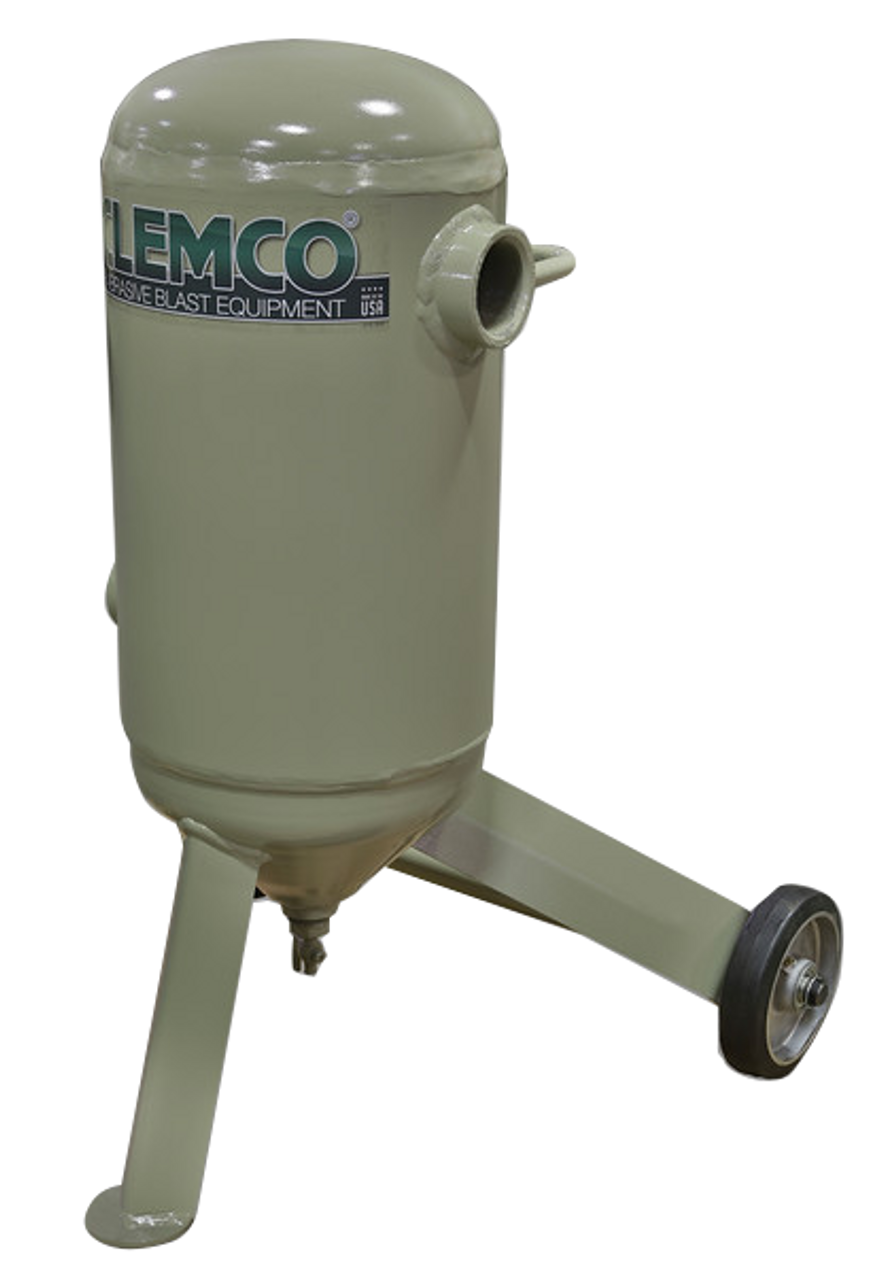

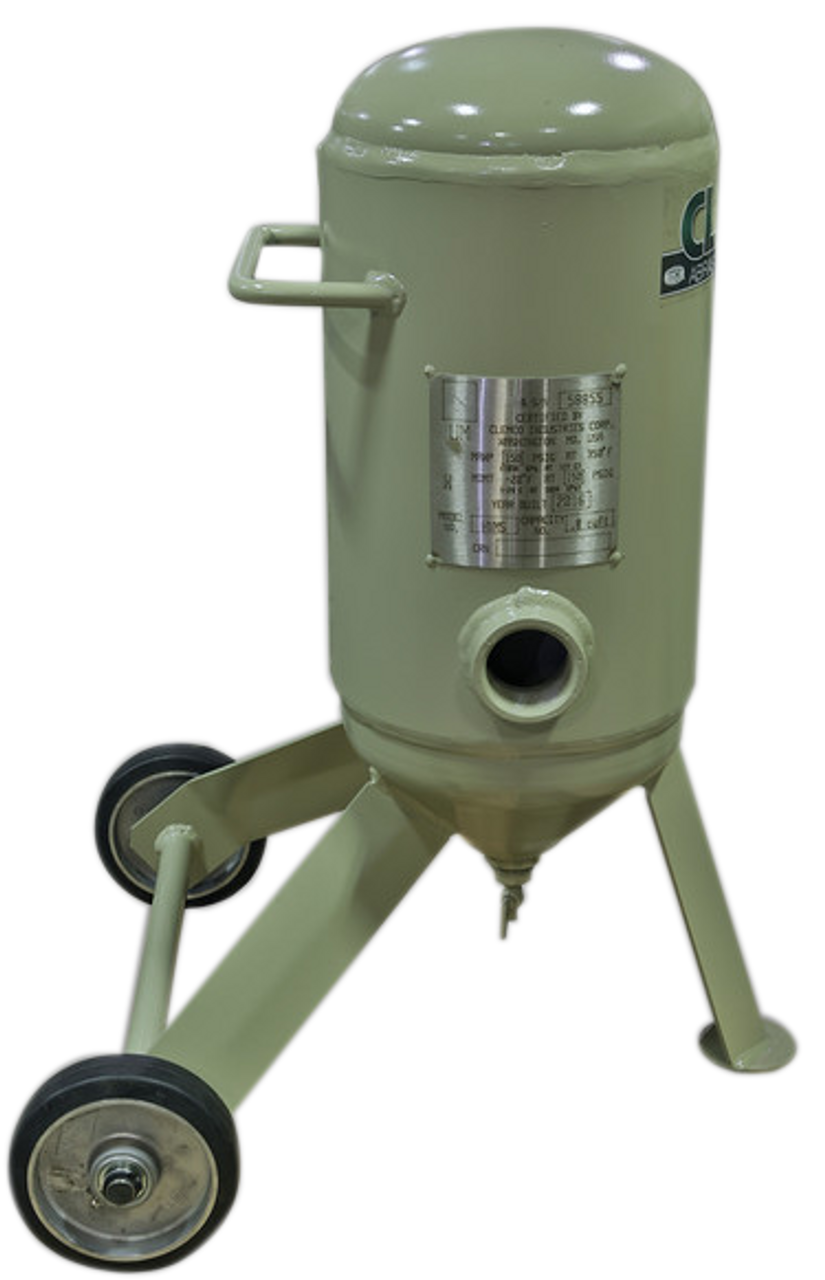

Portable 800-cfm capacity Coalescent Filter removes water from the compressed air supply for multiple blast machines and other pneumatic tools requiring a dry, high-volume air supply. Two 6-inch wheels and a rigid handle allow one person to move the Coalescent Filter along a smooth, level surface. The filter has one outlet and a manual petcock to drain accumulated moisture.

The Coalescent Filter removes water, oil, and dirt particles down to 10 microns from the compressed-air supply. It is designed for use with portable and stationary compressors, and works in conjunction with a conventional particulate air filter installed at the blast machine inlet.

The Coalescent Filter requires at least 200 cfm of air flow at 50 psi to operate.

Advantages
Costs less to purchase and less to operate than refrigerated or chemical drying systems, which may be required in more humid environments.
One Coalescent Filter serves mutiple blast machines or other pneumatic tools.
Simple, rugged design for in-plant or field use.
Cleaning is the only maintenance required.
