220-700 Modular Dust Collectors
MBA | 220-700 Modular Dust Collectors
Part number: DC 220
The DC 220 and 440 – 700 cfm @ 1" S.P. Modular Dust Collectors are two models for use with many sandblasting cabinets. These dust collectors can save space by being located in a different area from the MediaBlaster® itself. Not being attached to the cabinet can have advantages such as a smaller blasting cabinet footprint, location of the dust collector in a different room, larger dust storage filter size and easier to clean and service.

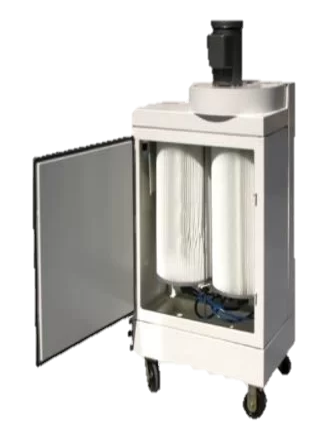

Both the 220 and 440 use the same welded dust collector filter cartridge chamber with the same exact footprint but they are assembled in modular design to allow many different configurations. Each uses the MERV Tested and Certified Filter Cartridge with 220 or 440 sq.ft. of filter area for single or dual cartridge filters. Your application decides the number of filter cartridges you want - remember that double the filter are equals 1/2 the maintenance. It also decides the blower configuration; single and dual filters are standard with 700 cfm pressure blower assembly.
The DC 220 or 440 include a removable shovel dust drawer for easy dust removal, standard. This construction allows you to replace the drawer if dust is still inside the unit acting like a shovel to scoop up the dust. A 700-cfm radial class III pressure blower assembly that also includes the blower silencer is standard with this model. Blowers that move air make noise and these two dust collectors move air so the blower silencer is included.
Model Name:
220-700 and 440-700 Modular Dust Collectors
Machine Type:
Single (220) and dual (440) filter modular dust collector
Filter Area & Type:
220 or 440 sq.ft. modular dust collector – single vs dual filter cartridge – MERV tested and certified
Blower CFM:
700 cfm @ 1” S.P.
Additional Blower Info:
700 cfm Class III Pressure Blower, aluminum non sparking impeller standard, upgrade to 2 hp 1100 cfm blower on dual cartridge 440 sq.ft. model
ADDITIONAL INFORMATION
Compact cartridge dust collector for blasting cabinet with older bag type dust collector
Electrical:
120-volt single power
WARNING:
Restrictions and Warning
Paint Specification:
Environmentally friendly, high-grade polyurethane high gloss paint. Standard colors include MBA beige and high gloss light gray. Custom color matching is available using customer supplied color sample, please call 866-204-7068 for pricing.
Application:
Any blasting cabinet
Key Features:
standalone – pneumatic vibrator cleaning cycle – blower silencer – optional casters, optional hopper bottom dust storage and more
- 100% welded cabinet construction 12- and 14-gauge CRS
- MERV certified 220 or 440 square foot filter cartridge, (s)
- Vertical filter cartridge for increased cleaning efficiency
- 700 cfm pressure blower using a 3/4 hp 120-volt blower motor with blower silencer
- Plenum chamber for less static and more blower cfm volume
- Pneumatic Vibrator Cartridge Cleaning Cycle, air switch operated
- Slide out dust drawer for easy dust storage and removal
- Large service access door for easy maintenance and inspection
