4 & 6 Cartridge Reverse Pulse Dust Collectors
MBA | 4 & 6 Cartridge Reverse Pulse Dust Collectors
Part number: R/P Free Standing

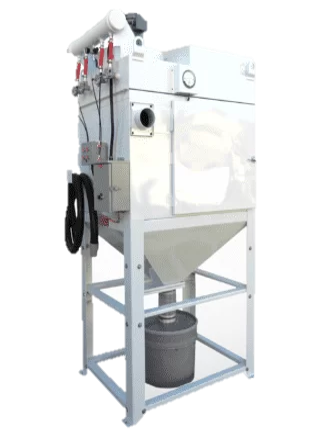

The Media Blast® R/P Free Standing Dust Collectors are available in two model sizes, 4-Cartridge with 880 square feet of filter surface or 6-Cartridge with 1320 square feet of filter cartridge surface. Both occupy almost the same machine footprint. Both units include the Integrated Vacuum Clean-Up Assembly, Adjustable Legs for easy shipment with vertical filters and Magnahelic Monitor Gauge.
These dust collectors are built for sandblasting application unlike the horizontal filter units commonly found used in Industry for lighter dust loads. Air Pollution Agencies favor vertical filters for sand blasting cabinets to gain the advantage of gravity during automatic reverse pulse cleaning.
Choose the size right dust collector for the application or let us help you, possibly include HEPA after filter for increased efficiency or machine cell operation. Reverse Pulse Cleaning during machine operation with manual over-ride controls and Integrated Vacuum Cleanup are all included.
Model Name:
R/P 880 & 1320 Dust Collector
Machine Type:
Abrasive Blaster Dust Collector, stand-alone for manual and automated abrasive blasting cabinets
Filter Area & Type:
880 sq. ft. – 1320 sq. ft. – 4 vs 6 cartridge models – MERV tested and certified
Blower CFM:
700 to 1500 cfm
Additional Blower Info:
Direct drive 1100, 1300 or 1500 cfm @ 1″ S.P. class III pressure, 2 hp 1100 cfm standard, all blower motors are TEFC
DUCT ATTACHMENT INLET:
Available with 4-, 5-, 6-, 7-, & 8-inch dust inlet for duct attachment
Electrical:
Single power source high voltage
Paint Specification:
Environmentally friendly, high-grade polyurethane high gloss paint. Standard colors include MBA beige and high gloss light gray. Custom color matching is available using customer supplied color sample, please call 866-204-7068 for pricing.
Application:
automated blasting cabinets – high production blasting cabinets – manual blasting cabinets with high daily duty cycles and production soda cabinets
Key Features:
standalone – automatic timed reverse pulse cleaning – manual over ride controls – hopper dust storage – 32-gallon dust removal drum – silencer – integrated vacuum assembly – magnahelic monitor gauge – adjustable legs for low shipping height – optional HEPA after filter
- 4 and 6 filter models offering 880 or 1320 sq.ft. of filter area
- Adjustable legs for lowered height to permit easy shipment to location
- Vertical filter cartridge for increased efficiency
- Two (2) service access doors with locking refrigerator door latches
- Adjustable timed reverse pulse cleaning cycle controls
- Manual pulse over-ride controls for static cleaning
- Pulse amplification nozzles each cartridge
- Outside manifold and controls for easy service
- 2 blower combinations for high static blowers used with abrasive blasting machines with and without pneumatic conveyors and separator reclaimer
- Magnahelic monitor gauge for monitoring filter cartridge dust load
- Blower silencer for 80 db blower operation
- Large hopper dust storage capacity
- 20 gallon contained dust removal drum with slide gage
- Dust inlet plenum
- Integrated vacuum cleanup assembly with hose, nozzle, bracket and slide-gate on off control
- Leg floor lag pads
