MBA | VAC-110-400 Dust Collector
Part number: VAC-110

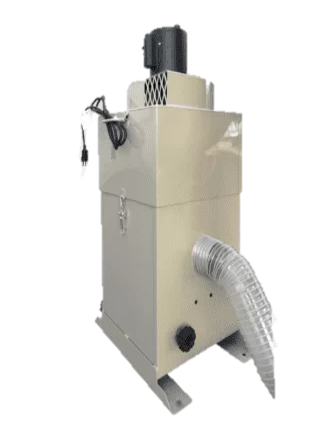

The VAC-110-400 by Media Blast® includes features from the VAC-110 Vacuum Dust Collector to include the filter rapper cleaning assembly and the removable dust drawer. It is a 110 sq.ft. MERV Test filter cartridge that has an efficiency rating just below HEPA filters. Understand the filter cartridge must be cleanable and HEPA filter are not. Also included is a 1/2 hp 400 cfm Class III Pressure Blower operating at 3450 rpm for higher static operation and six, (6), feet of flexible duct for connection to your existing very messy blasting cabinet.
Model Name:
VAC-110 400
Machine Type:
Modular dust collector – single filter cartridge 220 sq.ft. – optional dual filter cartridge 440 sq.ft. – one cabinet with single or dual filter – 700 cfm blower standard – 3/4 hp blower motor
Filter Area & Type:
110 square foot cartridge – MERV tested and certified – dust removal drawer – manual filter cleaning rapper
Blower CFM:
400 @1” S.P.
Additional Blower Info:
400 cfm Class III Pressure Blower, aluminum non sparking impeller
Best Application
Replace small filter shop vacuum with large cfm blower and dust collector filter
Electrical:
120-volt
WARNING:
Restrictions and Warning
Paint Specification:
Environmentally friendly, high-grade polyurethane high gloss paint. Standard colors include MBA beige and high gloss light gray. Custom color matching is available using customer supplied color sample, please call 866-204-7068 for pricing.
Application:
Light Duty Blasting Cabinets, Entry level Sandcarving Machines
Key Features:
Standalone – pneumatic vibrator cleaning cycle – dust storage drawer standard – blower silencer – optional casters, optional hopper bottom dust storage and more
- 110 sq.ft. MERV Tested and Certified Filter Cartridge
- 400 CFM Class III Pressure Blower, Radial Impeller
- 1/2 hp blower motor, 3450 rpm
- 6’ of polyurethane 4” diameter flexible hose for attachment to any blasting cabinet
- Removable blower plenum
- 120-volt electrical operation
- Service cord
- Stability legs with lag holes to prevent movement
- 14- and 12-gauge CRS construction, 100% welded
