M-SECTION RECOVERY SYSTEM (PNEUMATIC)

CLEMCO | M-SECTION RECOVERY SYSTEM
Part number: 28227

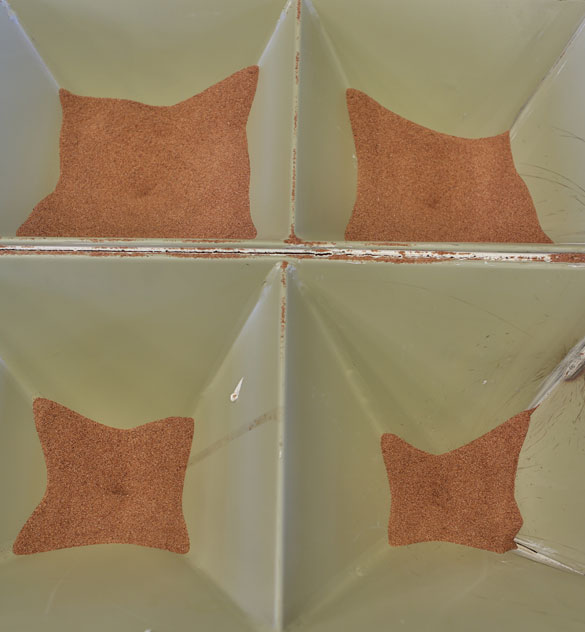

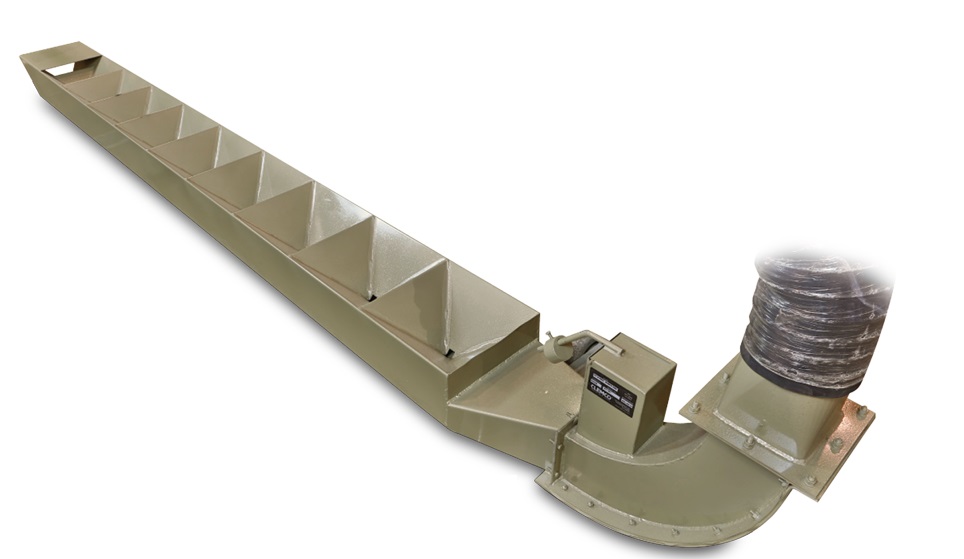

Our standard sweep-in M-Section® pneumatic recovery systems efficiently recover and recycle most medium and low-density (less than 100 lbs per cu. ft.) blast media, such as glass bead, plastic, and aluminum oxide.  The recovery section can be placed in a shallow channel, just 10 inches deep, for a true sweep-in operation, or surface mounted where conditions will not allow excavation

M-Section Systems include:

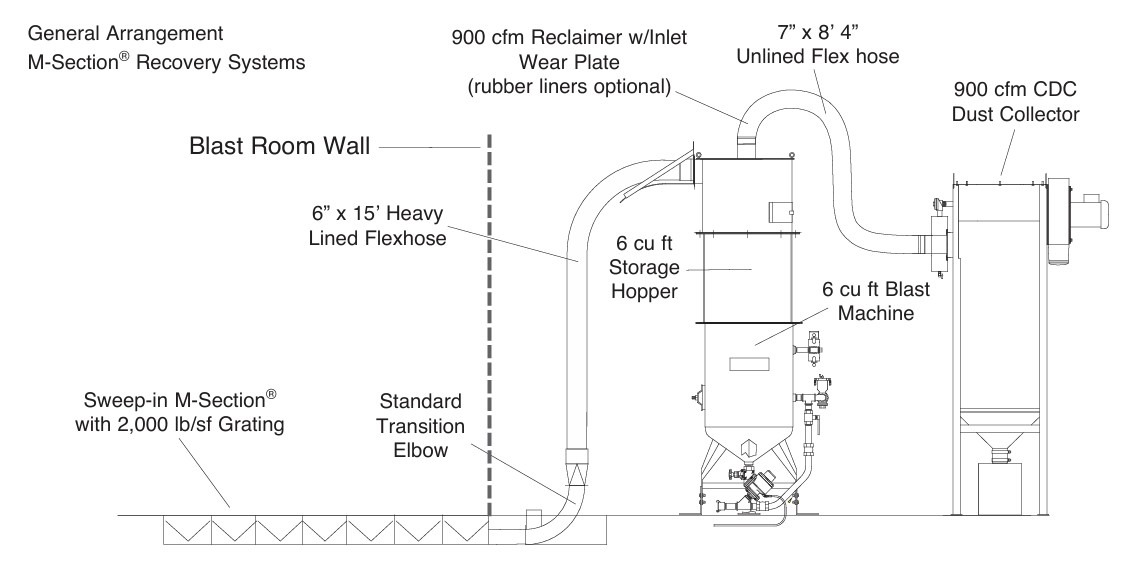

Recovery assembly, 2000 lbs per square foot grating, 900 cfm media reclaimer with wear plate and externally-adjustable vortex cylinder, dust collector to ventilate the reclamation system, 6 cu ft stationary blast machine with 1¼" piping, Sentinel abrasive metering valve, TLR-300 remote controls with ACS, 6 cu ft media storage hopper, 50 ft coupled Supa blast hose, TXP-6 nozzle, pressure regulator, and 1½" air filter. Electrical supply (230v or 460v — please specify)


Available Configurations:
• 8 ft L with 900 cfm CDC | Part number: 28227
• 8 ft L with RPH-2 reverse-pulse dust collector | Part number: 14217
• 10 ft L with 900 cfm CDC | Part number: 28228
• 10 ft L with RPH-2 reverse-pulse dust collector | Part number: 14220
• 12 ft L with 900 cfm CDC | Part number: 28229
• 12 ft L with RPH-2 reverse-pulse dust collector | Part number: 14223

Options:
 • Upcharge to system price for 60° slope blast machine and M-sections (for plastic and starch media) | Part number: 24783
• Ramp plate (needed for surface-mount systems)
    –8 foot | Part number: 29444
    –10 foot | Part number: 28809
    –12 foot | Part number: 28811
• Reclaimer rubber liners, 900 cfm | Part number:  23151
• Electrical control panel
    –230v 3 ph 60 hz | Part number:  27876
    –460v 3 ph 60 hz | Part number:  27877
